Multi-Point level switches can be utilized for monitoring multiple liquid level points within a single tank. In addition to tracking changing level points of a single liquid within a tank, multi point level switches are ideal for monitoring liquid interfaces and emulsions in vessels simultaneously containing two or more liquids.
Types of Multi-Point Level Switches

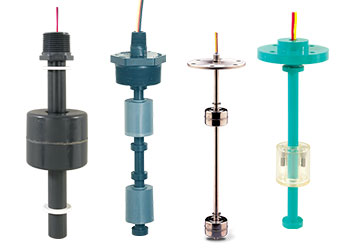

Float Multi-Point Level Switches
Multi-station float level switches are ideal for monitoring liquid interfaces and emulsions in vessels containing two or more liquids. The durable construction of these reed switch designs ensures long, trouble-free service. Because shock, wear, and vibration effects are minimized, these hermetically sealed switches provide precise repeatability with no more than 1% deviation. The switch actuation points remain constant over the life of the unit.
Float Level Switch Models

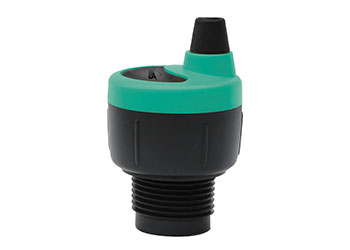

Ultrasonic Multi-Point Level Switches
For challenging fluid measurement, Gems Sensors ultrasonic UCL-510 Transmitter/ multi-point level sensor combo is the answer. This accurate and reliable sensor offers a non-contact alternative to our float of conductance sensors in small tank chemical feed or handling applications when corrosive, sticky, or dirty media are present. The UCL-510 features programmable level intelligence and can be reconfigured for different sensing duties.
Ultrasonic Level Switch Models
Multi-Point Level Switch Application and Industries
- Alternative Energy
- Food & Beverage
- General Industry
- Marine
- Medical
- Printing
- Process
- Semiconductor
- Water & Wastewater
Multi-Point Level Switch
Catalog Pages
Gems Sensors Catalog, LS-800PVC
View the Gems Sensors & Controls LS-800PVC Series catalog page.
Gems Sensors Catalog, LSP-800
View the Gems Sensors & Controls LSP-800 Series catalog page.
Gems Sensors Catalog, LS-300TFE
View the Gems Sensors & Controls LS-300TFE Series catalog page.
Multi-Point Level Switch
Installation Instructions
Featured Products
Float Multi-Point
Level Switches
LS-300 Multi-Point Level Switch
LS-300 Series Multi-Point Level Switch is a compact and versatile, low-cost, plastic liquid level switch with a broad choice of mountings and float materials. It is ideal for shallow tanks and reservoirs.U.L. Recognized; CSA Listed Versions...
LS-300TFE Multi-Point Level Switch
LS-300TFE Series Multi-Point Level Switch is a corrosion-resistant liquid level switch available in all-PTFE wetted parts for ultra-pure fluids. LS-300TFE features a one-piece molded design for low particle generation, 1 to 4 actuation levels in a...
LS-350 Multi-Point Level Switch
LS-350 Series Multi-Point Level Switch is custom configured to fit any container, with a wide range of mountings, fluid and electrical connectors, materials and lengths. The design combines a siphon tube and up to four liquid level sensors as a...
LS-700 Multi-Point Level Switch
LS-700 Series Multi-Point Level Switch is a compact unit that features the rugged durability of stainless steel or brass construction in a lightweight package. It is ideal for restricted spaces, including tanks less than 4 feet (1.22 m). U.L....
LS-800 Multi-Point Level Switch
LS-800 Series Multi-Point Level Switch is capable of supporting larger, more buoyant floats, and is physically stronger than other metallic models for better reliability in contaminated or turbulent media. LS-800 offers SPST or SPDT switches, and...
LS-800PVC Multi-Point Level Switch
LS-800PVC Series Multi-Point Level Switch is an inexpensive and durable all-PVC level switch for reliable sensing of corrosive liquids. Wetted parts make the LS-800PVC suitable for potable water applications.Lengths to 60 Inches (1524 mm)1 to 7...
LSP-800 Multi-Point Level Switch
The LSP-800 Series features inert materials making it suitable for corrosive liquids and vapors. Three standard model types in a choice of materials offer broad chemical compatibility. With 1 to 6 actuation levels and lengths up to 70 inches, the...
Ultrasonic Multi-Point
Level Switches
UCL-510 Ultrasonic Continuous Level Transmitter
UCL-510 Ultrasonic Continuous Level Transmitter is a non-contact level sensor with no-moving-parts built for general purpose small tank applications 49.2" (1250 mm) or less and offers switch, controller and transmitter capabilities in one...
UCL-520 Ultrasonic Continuous Level Transmitter
UCL-520 Ultrasonic Continuous Level Transmitter is a two-wire ultrasonic transmitter that provides non-contact level measurement up to 26.2' (7.98 m) and is built for challenging ultra-pure, corrosive or waste liquids. It is easy to install in...
